Preproduction model shown throughout with optional features. Actual production model may vary.
HOME CHARGING
STANDARD LEVEL 1
Charge almost anywhere there is a 3-prong outlet
HOUSEHOLD OUTLET
- Great option for average commute of around 60km or less each day
- Charge anywhere there is a common household Plug Type G
- About 4-7km of range per hour of charge
§
LEVEL 2
Home Charging Units

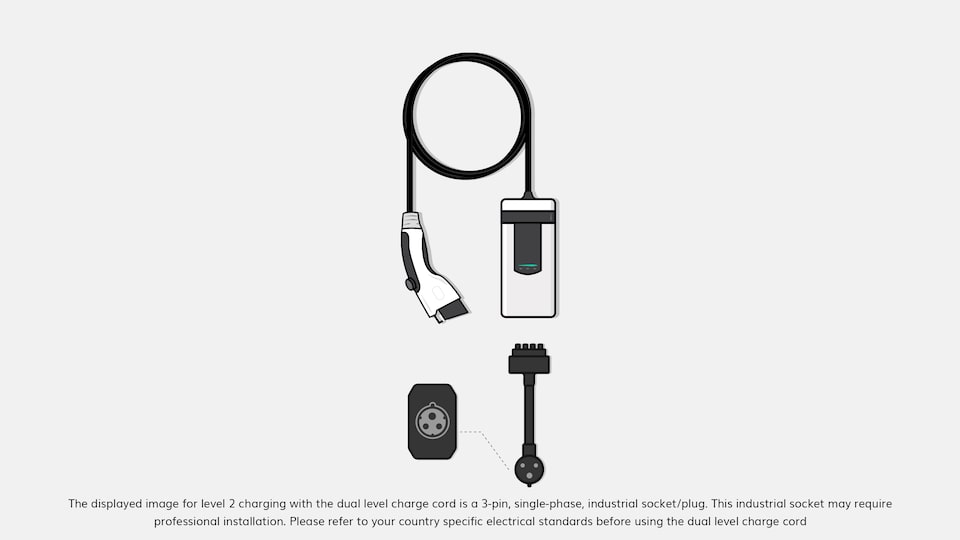

DUAL LEVEL CHARGE CORD
- Recommended charging solution for everyday charging
- When used 220 – 240 V, the Dual Level Charge Cord can recharge up to 80% in about 20-22 hours.
LEVEL 2
Home Charging Units
WALL CHARGER§
- Most common charger found in public stations
- Capable of single to three phase charging up to 22kW
- Quick way to top off before going out of town or on trips
- With up to 11kW power, charging at 12-14 hours.
With up to 22kW power, charging at 6-7 hours.
PUBLIC CHARGING
LEVEL 2
Charge in many public locations
MOST COMMON TYPE OF PUBLIC CHARGING STATION§
- Available in many locations such as shopping malls, restaurants, parking lots
- Up to 22kW AC charging
- Charge while you work at available stations
- Charge your vehicle while you are on the go
- With up to 11kW power, charging at 12-14 hours.
- With up to 22kW power, charging at 6-7 hours.
LEVEL 3 - DC FAST CHARGING
Charge while you’re away from home
ACCELERATED CHARGING WHILE ON THE GO
- 50 – 350kW DC fast charging
- Around 24 – 170km of range in about 15 minutes of charge
§ - A fast way to charge when short on time

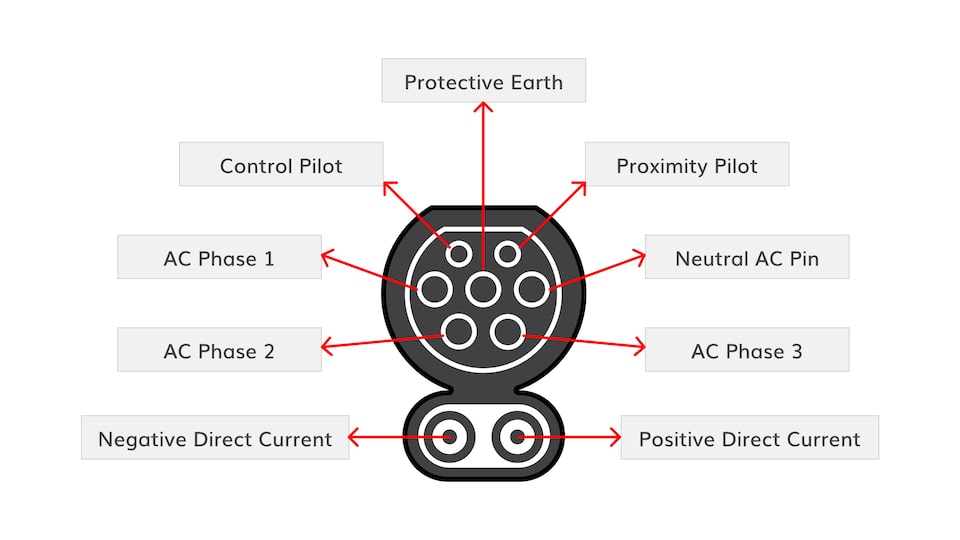

AVAILABLE CHARGER SOCKETS IN THE MIDDLE EAST
Displayed charger sockets/plugs are applicable for GCC spec GM vehicles
- Single to Three Phase plug & charging up to 22 kW AC
- Can accommodate up to three – phase outputs
- Version of type 2 that supports from 50 kW DC fast charge & up to 350 kW ultra-fast charge
- Can take AC charge through connector in top half or DC charge via combined connector parts
- Two large DC pins are added below, and the four AC pins for neutral and three-phase are removed.
AC VS DC CHARGE
AC CHARGING (LEVEL 1 + LEVEL 2)
AC power is supplied from the charging station to the onboard AC/DC converter, which supplies DC power to the battery.
DC FAST CHARGING
The AC/DC conversion takes place off board the vehicle and the charging station supplies DC power directly to the vehicle battery.
